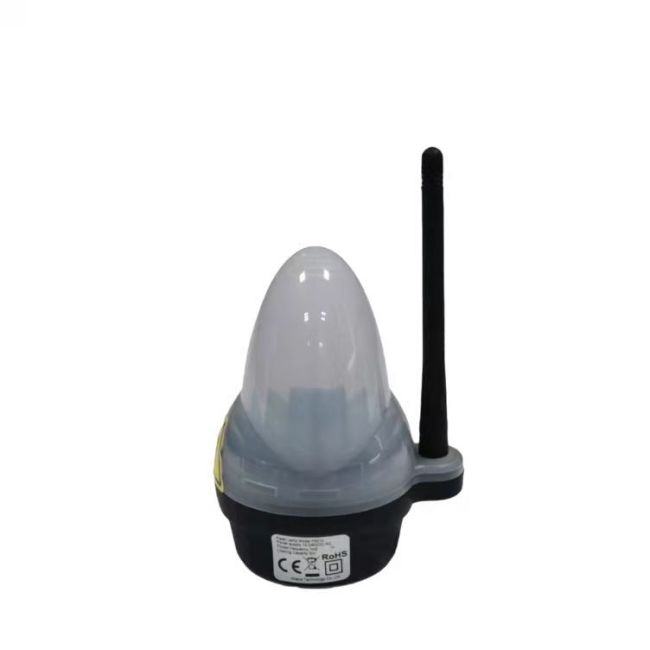

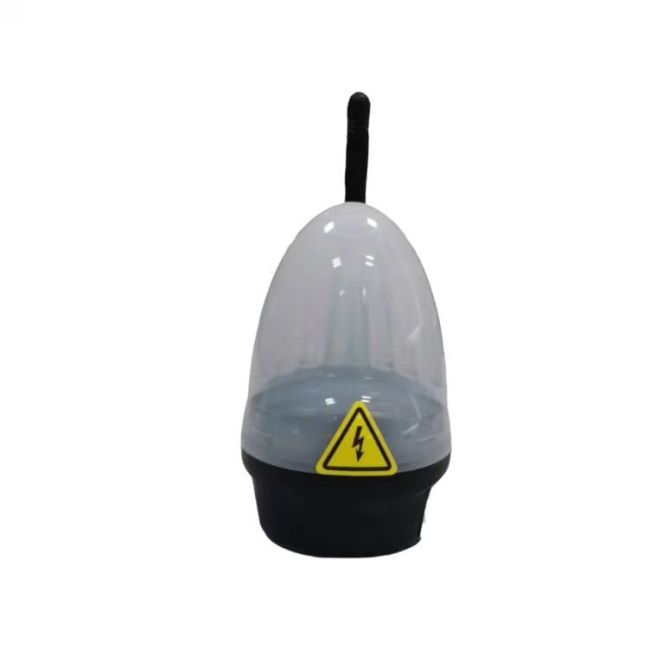

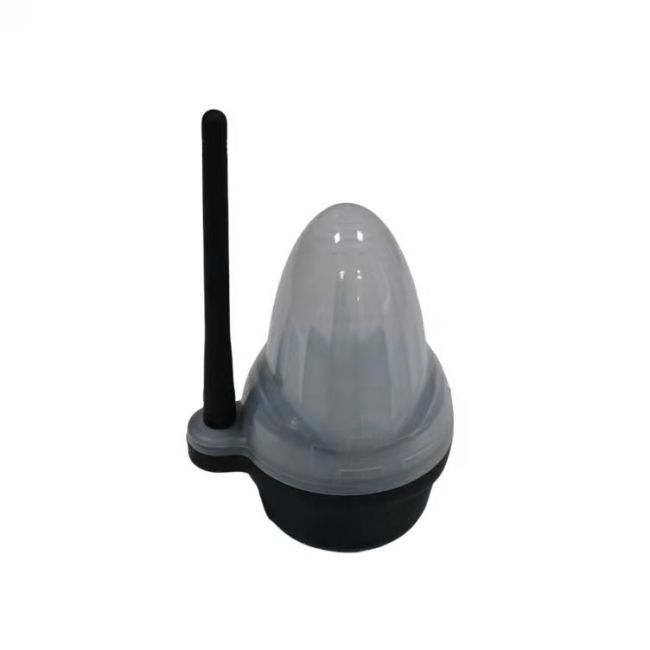

Auto door LED flashing lamp F6010
hot sell small size auto gate LED flash lamp
- Item No.F6010MOQ58 set
- Product size7 x 6.5 x 13 cmProduct weight141 g
- CTN. Spec 46.5*38*21 cm / 52setG.W/N.W7 / 6 kg
Choice
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
LED Gate Flash lamp F6010
I. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have been eliminated
II. Technical Specification
1. working voltage:12-240VAC /DC
2. Loading capacity:<3W
3. Flicker Frequency:1HZ
4. Working temperature:-20º~+60℃
5. IP Level: IP54
6. Size:φ76* 125mm
III. Connecting Instruction
1. Port CN1 is for connecting the power input, working voltage is 12-240VAC/DC
2. Port CN2 is for connecting the antenna to extend the effective distance of controller
IV. Instructions
4.1 LED will flicker in 1HZ after power on
4.2 JP1 switch
It’s the switch for switching LED in flickering or lighting, When JP1 at flash, LED will flicker in 1Hz after power on When JP1 at No flash,LED will light after power on
