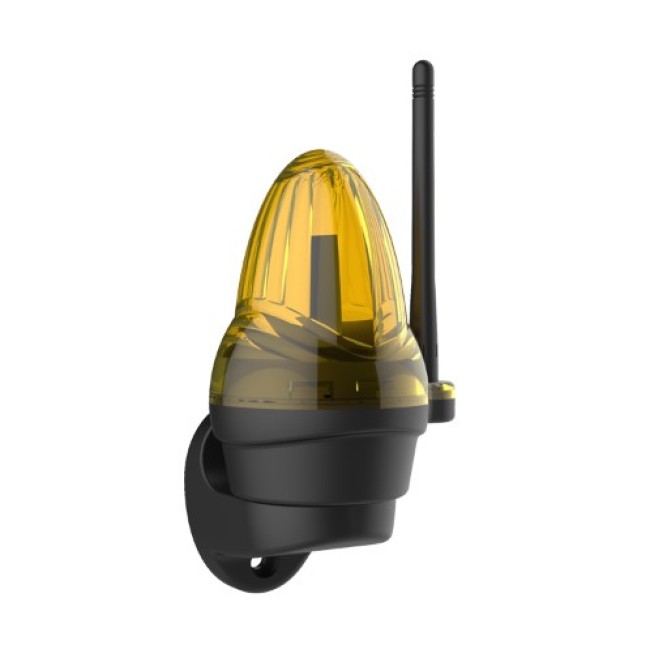

LED Gate Flash lamp F6000
Wide working voltage 12-240V
Packaging & Delivery
-
Product size
7 x 6.5 x 13 cm
-
Product weight
141 g
-
CTN. Spec
46.5*38*21 cm / 52set
-
G.W/N.W
7 / 6 kg
-
Certification
CE
-
Color
Yellow
-
Working voltage
12-240VAC /DC
-
Product size
φ68* 120mm
-
Product weight
112g
-
Loading capacity
<3w
-
Working temperature
-20º～+60℃
-
Lamp
LED
-
Flicker frequency
1hz
-
IP Level
54
LED Gate Flash lamp F6000
I. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have been eliminated
II. nbsp;Technical Specification
1. working voltage：12-240VAC /DC
2. Loading capacity：<3W
3. Flicker Frequency：1HZ
4. Working temperature：-20º～+60℃
5. IP Level: IP54
6. Size：φ76* 125mm
III. Connecting Instruction
1. Port CN1 is for connecting the power input, working voltage is 12-240VAC/DC
2. Port CN2 is for connecting the antenna to extend the effective distance of controller
IV. Instructions
4.1 LED will flicker in 1HZ after power on
4.2 JP1 switch
It’s the switch for switching LED in flickering or lighting, When JP1 at flash, LED will flicker in 1Hz after power on, When JP1 at No flash, LED will light after power on
