200pcs transmitters stored siding gate control board SL2003
Sliding gate control PCB board SL2003
Packaging & Delivery
-
Product size
17.2 x 10.4 x 4 cm
-
Product weight
502 g
-
CTN. Spec
42.5*35*21 cm / 40
-
G.W/N.W
19 / 18 kg
-
Working temperature
-20℃ to 60℃
-
External switch one button& three button
Yes
-
Installation at left or right side
Yes
-
Auto close time
5/10/30S optional
-
Auto reverse when meet obstacle
Yes
-
Electric lock
No
-
Resistance of opening and closing door
Yes
-
Running time
Adjustable
-
Soft start soft stop
Yes
-
Build-in fuse
Electric circuit(0.5A); Motor(10A), pls exchange appropriate fuse according to loading capacity
-
Certification
CE
-
Voltage output
AC24V
-
Self-learning function
Yes
-
Loading capacity
2HP 220VAC
-
Transmitters stored
200
-
Product weight
453g
-
Product size
165*92*38mm
-
Working voltage
220VAC, 50Hz
-
Code
Rolling
-
Frequency
433.92MHz
Sliding gate control board SL2003
I. Safety Instruction
1.1 For security, please read instructions carefully before initial operation; making sure that the power is off before connection.
1.2 Please clear the memory before initial operation. (Ref.: Erasing ALL learned/memorized Transmitters)
1.3 Do not learn the remote control when motor is operating in order to avoid mis-operation.
1.4 The received signal may be interfered by other communication devices. (e.g. the wireless control system with the same frequency range)
1.5 It is used only for the manual remote control and wireless control equipment / system which must not endanger life or property during
running failure, or its security risks have been eliminated.
1.6 It should be applied in dry indoor place or in the electric appliance place.
II. Technical Index
2.1 Working voltage: 220VAC 50Hz
2.2 Temperature range: -20℃ to 60℃
2.3 Loading capacity : 2HP 220VAC
2.4 Built-in fuse: electric circuit(0.5A); Motor(10A),Please exchange appropriate fuse accoding to loading capacity
2.5 Time of soft-start : 1S ; soft-stop: 3S/5S/7S are optional
2.6 Running time: Adjustable from 5s to 100s ----S4 is to set up
2.7 Frequency: 433.92MHz
2.8 Transmitter stored: 200PCS
2.9 Output voltage: AC24V
2.10 Output with electric lock: AC220V
2.11 Output with flash lamp: AC220V
2.12 External switch (open,stop,close in a loop)
2.13 External limit ( DIP8 to select NO and NC)
2.14 External infrared (NC contact)
2.15 Resistance of opening and closing door is adjustable
2.16 Auto close time is adjustable: (5S,10S,30S are optional by using DIP1,DIP2)
2.17 Deadman and Impulse remote system are optional by DIP5
2.18 Installation at left or right side is optional by DIP6.
2.29 Single / three button control is optional by DIP7
2.20 Size: 165*92*38
III. NOTES
1. Man-made resistance is needed after adjusting resistance,in order to make sure the resistance is appropriate or not.
2. Open and stop resistance shall be examined regularly.
Send your message to us
No need register, just fill in contact info below, we will reply you within 24 hours!

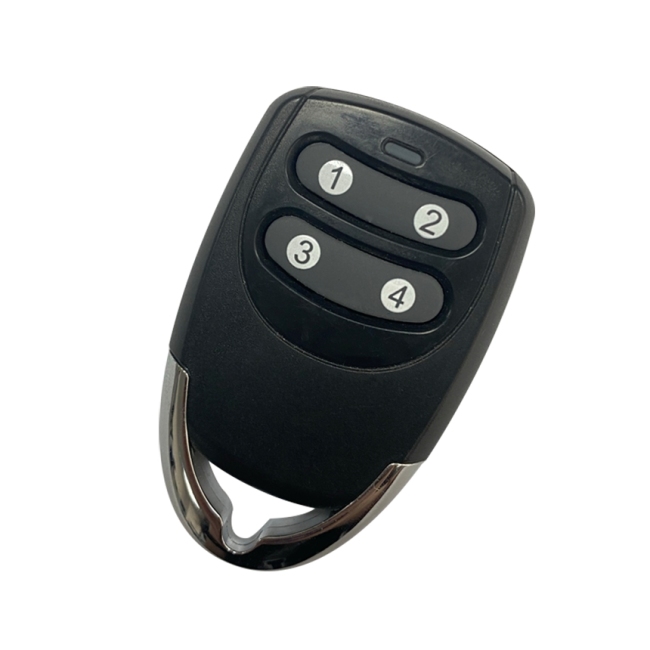

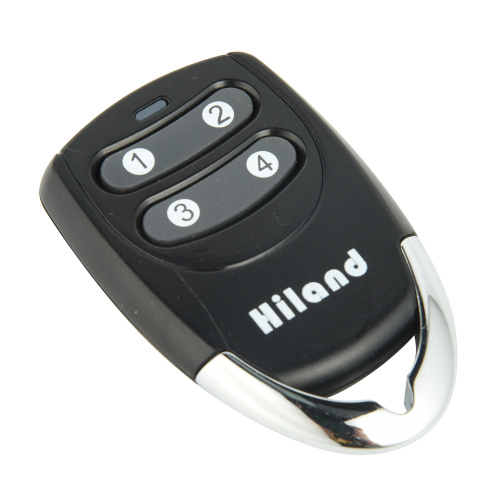

.jpg?x-oss-process=image/resize,m_pad,h_650,w_650 "Wireless Gate Remote Control T3401")
