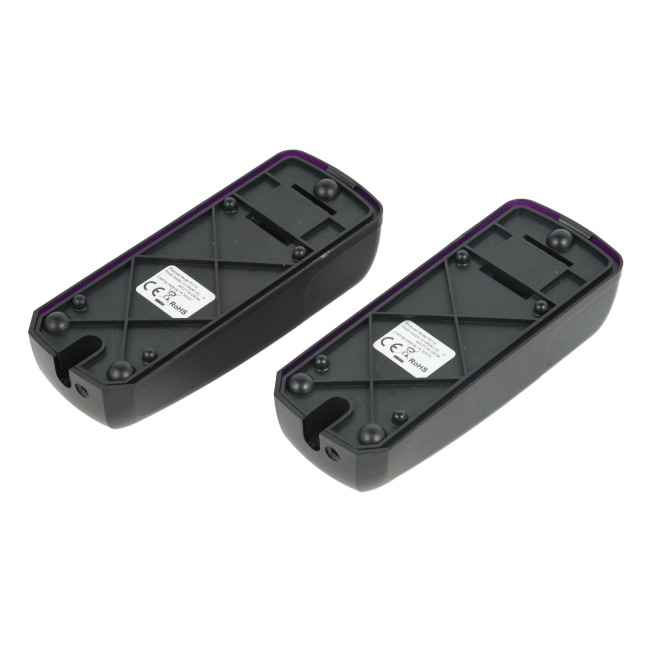

Door battery type photocell P5111

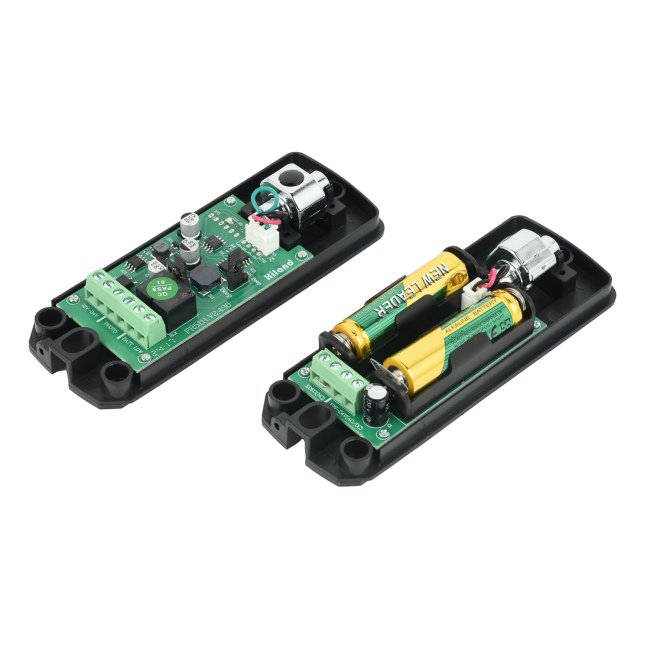

Battery inside automatic gate control photocell P5111
Packaging & Delivery
-
Product size
14 x 11.5 x 3.5 cm
-
Product weight
245 g
-
CTN. Spec
38*20*20 cm / 40Set
-
G.W/N.W
11 / 8.8 kg
-
Certification
12-24VAC/DC or 1.5V, 2 x LR6 AA size battery
-
Color
Dark purple
-
Product weight
220g
-
Loading capacity
1A/30VDC
-
Working temperature
-20℃ to 60℃
-
Wavelength
940nm
-
IP Level
IP54
-
Working current
Emitter: ≤8mA receiver: ≤40mA
-
Angle of opposite emission
≤±5°
-
Receiver range
≥12m
-
Internal Rotation System Adjustable Angel
Adjustable Angel 0～180 º
Automatic gate control Battery type Photocell P5111
I. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. This photocell is without any fuse, so Please make sure the power is off before installation;
3. Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated;
4. Please guarantee the products used in effective working range.
II. Technical Specification
1. Working voltage: 12~24VAC/DC or 1.5v,LR6 AA size
2. Working current(24VDC):emitter: ≤8mA receiver: ≤40mA
3. Photocell wavelength: 940nm
4. Angle of opposite emission: ≤±5º
5. Receiver range: ≥12m
6. Internal Rotation system adjusted Angle: 0～180 º
7. Working temperature: -20º～+60℃
8. Relay contact loading capacity: 1A/30VDC
9. Size: 127*50*35mm
