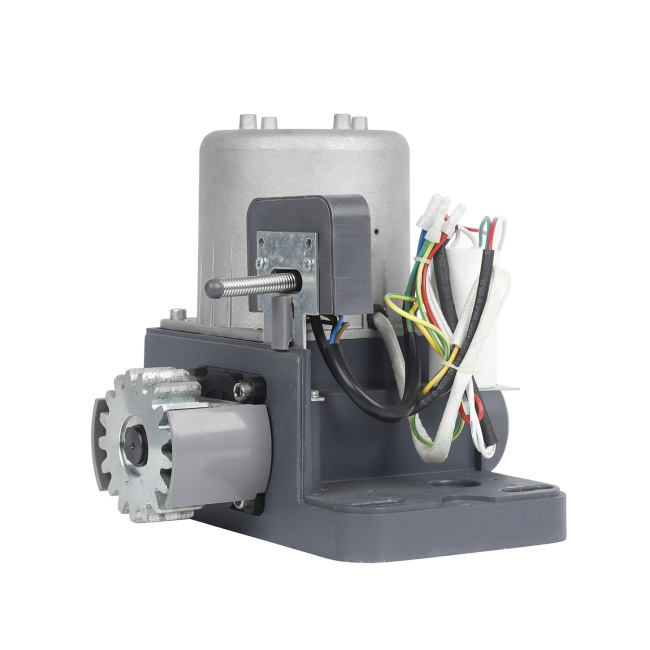

110V Sliding motor with spring limit switch SLG52802

New fashion modern design

Message

$??.00

Have chosenThere are no options selected.

Add To Cart Successfully!

SEND INQUIRY
110V Sliding motor with spring limit switch SLG52802
110V Sliding motor with spring limit switch SLG52802
110V Sliding motor with spring limit switch SLG52802
110V Sliding motor with spring limit switch SLG52802

110V Sliding motor with spring limit switch SLG52802

New fashion modern design

$

You need login check price / Register to be our client

  • Item No. SLG52802
    MOQ 1 Piece
  • Product size 27 x 25 x 34 cm
    Product weight 11 kg
Tag   280W sliding gate opener for 600kgs gate

Choice

Color classification / size
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

I 、 Safety Instruction

Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit.

The remote-control unit is controlled by a single button mode or three button mode (please refer to the instructions of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit will flicker when the button on it is pressed. Main engine and gate can be unlocked by disengagement wrench and the gate can move with manual operation after disengagement.

Please ensure that no one is around the main engine or gate when the switch is operated and it is usually demanded to examine the stability of installation. Please temporarily stop using if the main engine needs repairing or regulation.

The installation and maintenance of the products must be carried out by professionals.

II、Technical parameters

ModelSLG52801SLG52802SLG52803SLG52804
Power supply 110VAC/50110VAC/50220VAC/50Hz220VAC/50Hz
Motor power280W280W280W280W
Gate moving speed 13m/min13m/min13m/min13m/min
Maximum weight of gate600Kg600Kg600Kg600Kg
Remote control distance≥50m≥50m≥50m≥50m
Remote control modeSingle button mode
/ Three button mode		Single button mode
/ Three button mode		Single button mode
/ Three button mode		Single button mode
/ Three button mode
Limit switch Magnetic limit Spring limit switchMagnetic limit Spring limit switch
Noise ≤56dB≤56dB≤56dB≤56dB
Output torque14N.m 14N.m 14N.m 14N.m
Output shaft height46mm46mm46mm46mm
Frequency 433.92 MHz433.92 MHz433.92 MHz433.92 MHz
Working temperature-20°C - +70°C-20°C - +70°C-20°C - +70°C-20°C - +70°C
Package weight10.10Kg10.10Kg10.10Kg

10.10Kg
