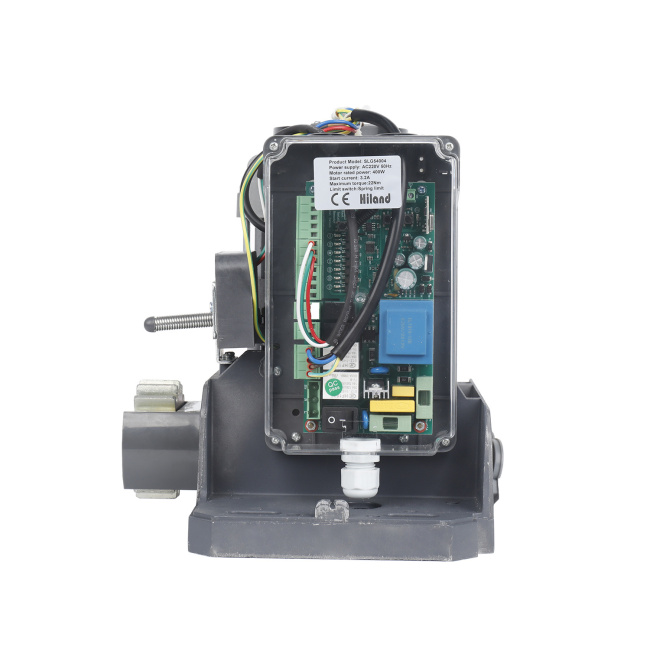

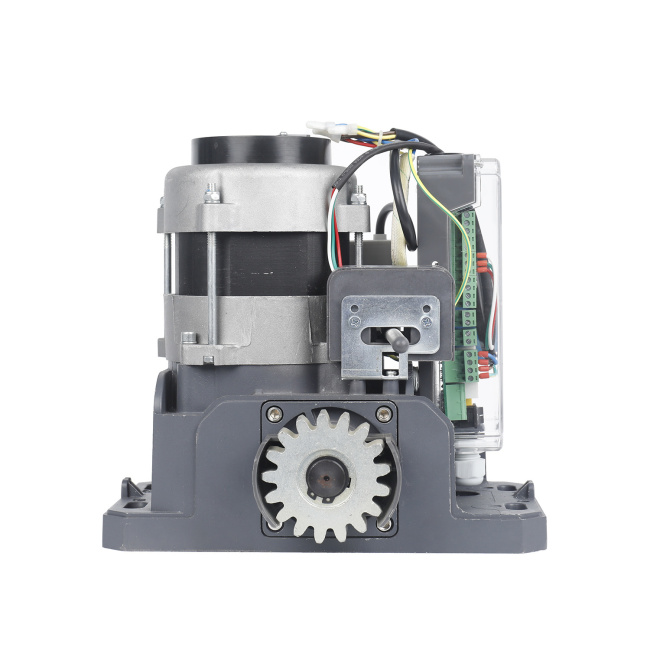

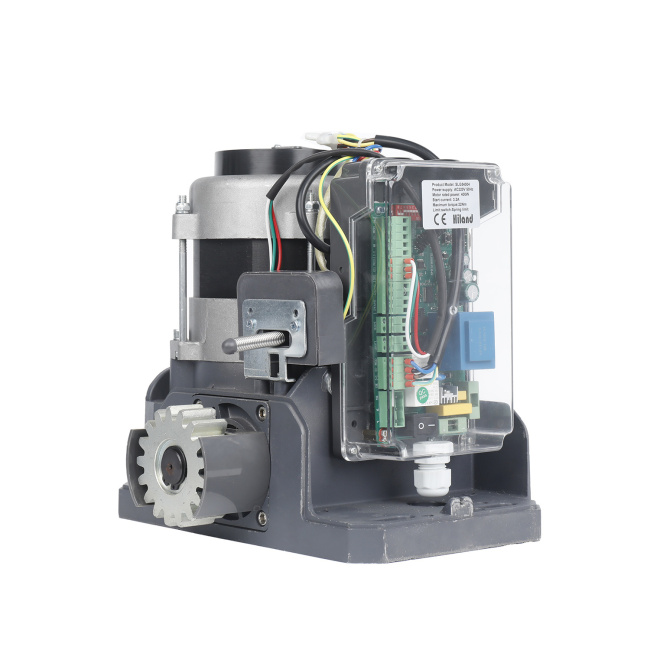

110V AC Sliding motor with spring limit switch SLG55506
110VSliding Gate Opener SLG55506
Packaging & Delivery
-
Product size
34 x 29 x 38 cm
-
Product weight
17 kg
1. Safety Instructions: Please ensure that the power supply voltage used is consistent with the power supply voltage of the door opener (AC110V or AC220V); children are prohibited from touching the control device or lighting.
The lighting is controlled by either a single-button mode or a three-button mode (please refer to the manual according to the actual door opener model). When the button on the lighting is pressed, the wrench will be triggered. The release wrench can unlock the main unit and the door body. After unlocking, the door body can be moved manually.
When operating the switch, please ensure that there is no one near the main unit or the gate. This operation is usually required to check the stability of the device. If the main unit needs maintenance or adjustment, please temporarily stop using it.
II. Technical Parameters
| Model | SLG55505 | SLG55506 | SLG55507 | SLG55508 |
| Power supply | 110VAC/50Hz | 110VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
| Motor power | 550W | 550W | 550W | 550W |
| Gate moving speed | 11-13m/min | 11-13m/min | 11-13m/min | 11-13m/min |
| Maximum weight of gate | 1500Kg | 1500Kg | 1500Kg | 1500Kg |
| Remote control distance | ≥50m | ≥50m | ≥50m | ≥50m |
| Remote control mode | Single button mode / Three button mode | Single button mode / Three button mode | Single button mode / Three button mode | Single button mode / Three button mode |
| Limit switch | Magnetic limit | Spring limit switch | Magnetic limit | Spring limit switch |
| Noise | ≤60dB | ≤60dB | ≤60dB | ≤60dB |
| Output torque | 32N.m | 32N.m | 32N.m | 32N.m |
| Output shaft height | 50mm | 50mm | 50mm | 50mm |
| Frequency | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C - +70°C | -20°C - +70°C | -20°C - +70°C | -20°C - +70°C |
| Package weight | 17Kg | 17Kg | 17Kg | 17Kg |
