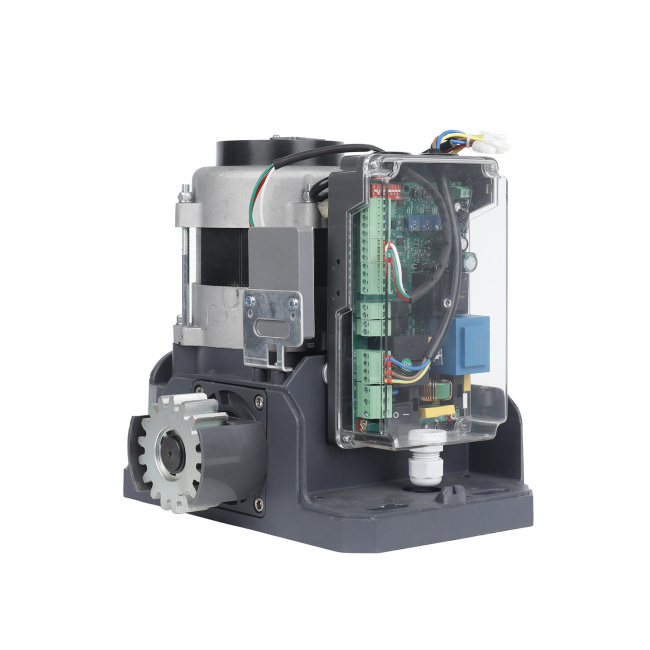

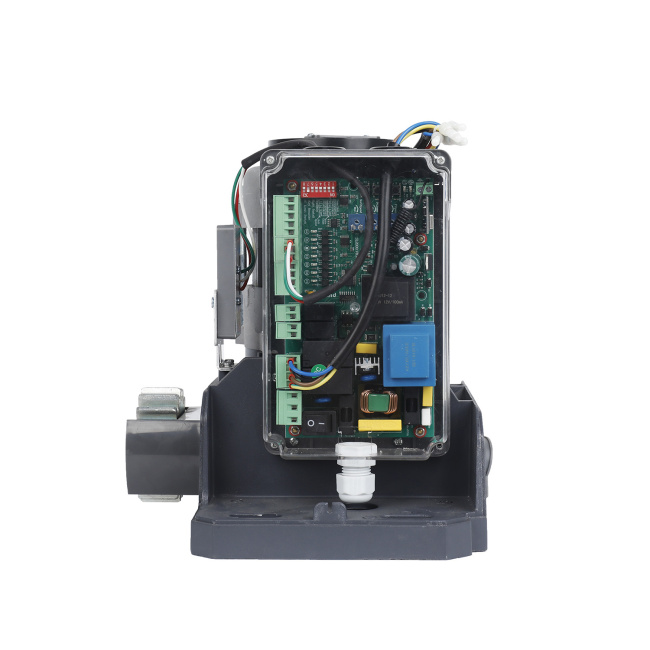

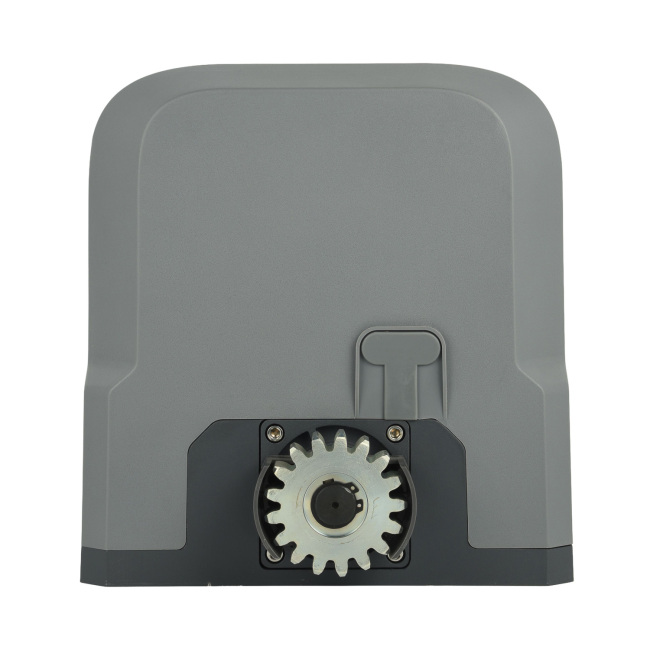

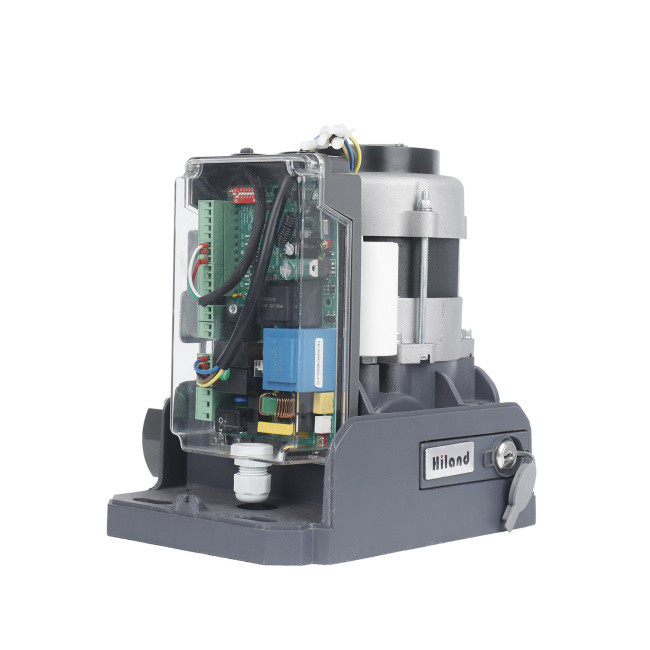

110V AC Sliding motor with magnetic limit switch SLG55505
110V sliding gate opener SLG55505
Packaging & Delivery
-
Product size
34 x 29 x 38 cm
-
Product weight
17 kg
I 、 Safety Instruction
Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit.
The remote-control unit is controlled by a single button mode or three button mode (please refer to the instructions of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit will flicker when the button on it is pressed. Main engine and gate can be unlocked by disengagement wrench and the gate can move with manual operation after disengagement.
Please ensure that no one is around the main engine or gate when the switch is operated and it is usually demanded to examine the stability of installation. Please temporarily stop using if the main engine needs repairing or regulation.
II、Technical parameters
| Model | SLG55505 | SLG55506 | SLG55507 | SLG55508 |
| Power supply | 110VAC/50Hz | 110VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
| Motor power | 550W | 550W | 550W | 550W |
| Gate moving speed | 11-13m/min | 11-13m/min | 11-13m/min | 11-13m/min |
| Maximum weight of gate | 1500Kg | 1500Kg | 1500Kg | 1500Kg |
| Remote control distance | ≥50m | ≥50m | ≥50m | ≥50m |
| Remote control mode | Single button mode / Three button mode | Single button mode / Three button mode | Single button mode / Three button mode | Single button mode / Three button mode |
| Limit switch | Magnetic limit | Spring limit switch | Magnetic limit | Spring limit switch |
| Noise | ≤60dB | ≤60dB | ≤60dB | ≤60dB |
| Output torque | 32N.m | 32N.m | 32N.m | 32N.m |
| Output shaft height | 50mm | 50mm | 50mm | 50mm |
| Frequency | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C - +70°C | -20°C - +70°C | -20°C - +70°C | -20°C - +70°C |
| Package weight | 17Kg | 17Kg | 17Kg | 17Kg |
