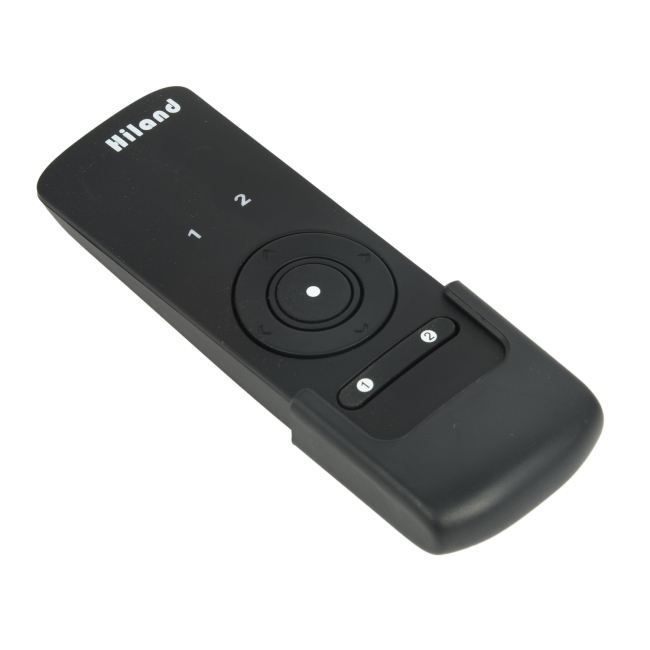

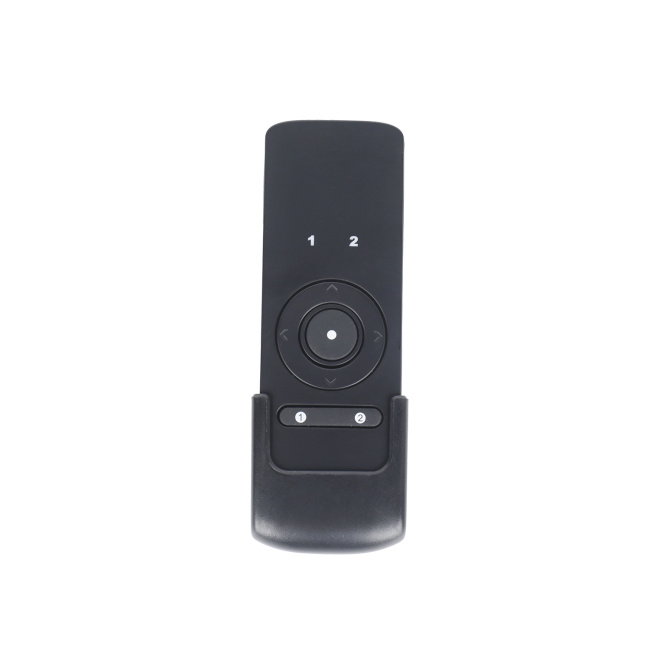

Door Transmitter T7210
Wireless 2-channel remote control door transmitter T7210
Packaging & Delivery
-
Product size
13.5 x 5 x 2.2 cm
-
Product weight
60 g
-
CTN. Spec
48*33*21.5 cm / 132pcs
-
G.W/N.W
11 / 6.3 kg
-
Certification
CE
-
Working range
50M（indoor）
-
Frequency
433.92MHZ
-
Code
Rolling code
-
Product size
11.5*3.9*1.37cm
-
Product weight
47g
-
Battery type
3V lithium battery CR2032
-
Channel
2
Auto Door Control Transmitter T7210
I. Technical Characteristics
1.1 Frequency: 433.92MHZ
1.2 Code：rolling code
1.3 Channel: 2
1.4 Battery: 3VDC CR2032
1.5 working distance : 50M（indoor）
II. Application Method
2.1 Press < , > or ①, ② to select the channel, user can select channel from 1 to 2 or select all 2 channels;
The indicator light of the Chosen channel(s) will turn on
2.2 After the selection, You could control the device with the transmitter by pressing ∧, ●, ∨.
Example:
Use channel 2 to control the device
Method:
1. Press ② ,make the light of channel 2 turn on.
2. Then press ∧, ●, ∨ to control the device
Method two:
1. Press > ,make the light of channel 2 turn on.
2. Then press ∧, ●, ∨ to control the device
