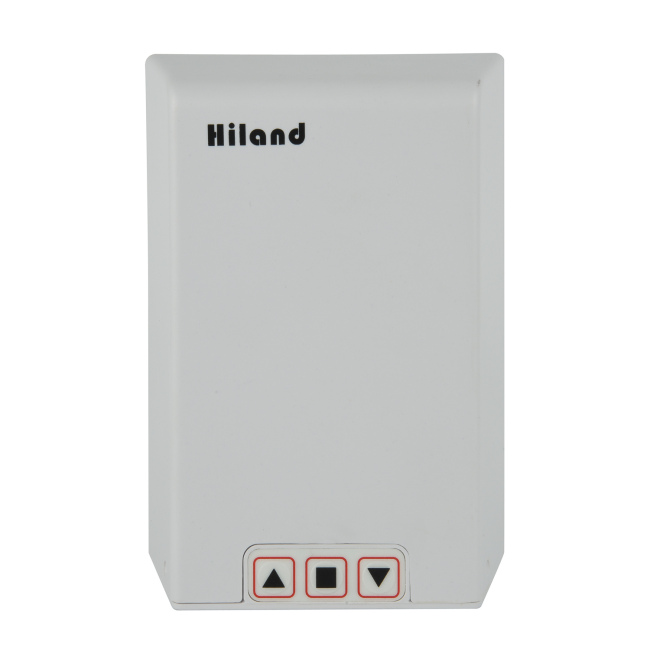

Tubular Motor Receiver TM5895
auto gate control tubular motor receiver
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
|Auto close time||5~200 seconds adjustable|
|Connect with||Photocell,flash lamp,external switch|
|Control||One or three buttons control|
|External switch one button& three button||three buttons control|
|Installation position||outside type|
|Loading capacity||1HP/220VAC or 0.5HP/110VAC|
|Suitable tubular motor||35mm, 45mm, 55mm, 59mm, 64mm, 92mm|
|With push buttons||Yes|
|Working temperature||-20℃ to 60℃|
|Working voltage||85 -265 VAC (110VAC/60HZ/220VAC /50HZ is optional according to motor)|
Packaging & Delivery
- Selling Units:
- Single package size:
- 16.1 x 10.3 x 4.5 cm
- Single gross weight:
- 293 g
- Packing size:
- 38 x 38 x 20 cm
- Packing gross weight:
- 8 g
- Packing net weight:
- 7.2 g
- Packing quantity:
- 30 unit

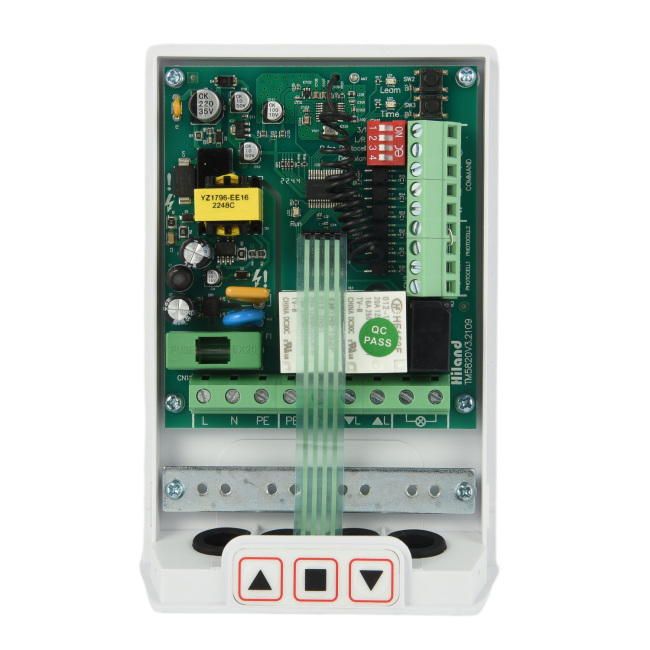

1. Learning transmitters：Press the learning button in the control board, LED is on, enters into the learning process; Press the same button twice, LED blinks for several times, then off. The learning process is successful.
2. Use the transmitter that already has been learned as old transmitter, press button 1 and button 2 at the same time. Then press button 2 to let it enters into the learning process. Press the same button on the new transmitter twice. The learning process is finished. In this way new transmitter can be learned without pressing the learning button on the control board.
3. Erasing transmitter: Press the learning button, continue pressing for 8s until LED turns off; Release learning button, LED will be on (about 1s) and then off; the erasing process is successful.
4. Button 1,2,3 in transmitter is in correspondence with open, close and stop.(The same as button on controller and the external three button control);
5. Single-button control is only effective to the learned button(The same as external single circle control).If a new button of transmitter learned into the control panel, the formal one is useless
Notes: For security, the controller is able to close the gate only after opening the gate for the first time operation.
1. Single button (Open-stop-close-stop); Three button (Open, stop, close).
2. Deadman model: Door moves when keep pressing button and stops when release; Impulse model: Press button and door moves, press button and door stops (Gate max running time is 100s single time)
3. Infrared protection: If without auto-close function, motor stops when photocell signal disconnecting during door closing.
4. Flash lamp: Lighting or blinking (frequency is 60 times) is optional when motor is running
5. With Auto-close function, Self-learning function; Max remote distance over 50 M
* Auto-close operation (1,needs to connect photocell 2,there is no this function if in Impulse model)*
