With Certifications: CE/CTICK/FCC/ISO/ROHS, Asking For Inquiry Now!
| Series | Internal/ External | Working voltage | One/three button(s) remote control | Max runing time | Surface button | Photocell | Loading capacity | Size (mm) | Output voltage | External switch | Flash lamp |
| TM50XX | Exernal | AC230V,50HZ | one/three adjustable | 100S(max) | Open/Stop/Close | / | 375W | 93*57.5*26 | / | / | / |

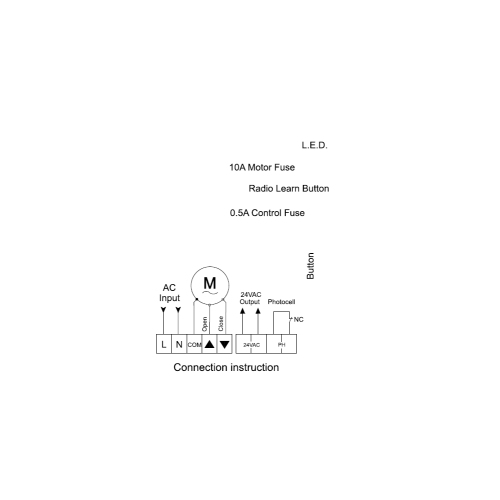

| TM510X | Exernal | AC230V,50HZ | one button，three buttons (different types) | 100S(max) | Open/Stop/Close | √ | 1470W | 113*74*44 | 24VAC | / | / |

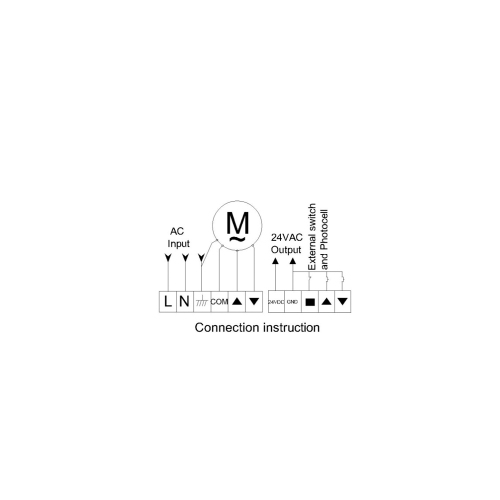

| TM511X | Exernal | AC230V,50HZ | one button，three buttons (different types) | 100S(max) | Open/Stop/Close | √ | 1470W | 113*74*44 | 24VDC | three buttons | / |
| TM515X | Exernal | AC230V,50HZ | one button，three buttons (different types) | 100S(max) | Open/Stop/Close | √ | 1470W | 113*74*44 | 24VDC | three buttons | / |
| TM516X | Exernal | AC230V,50HZ | one button，three buttons (different types) | 100S(max) | Open/Stop/Close | √ | 1470W | 113*74*44 | 24VAC | one button loop control | √ |
| TM53XX | Internal | AC85-265V | three buttons control | 3-100S (adjustable) | / | / | 375W | 25*27.5*150 | / | / | / |
| TM54XX | Internal | AC230V,50HZ | three buttons control | 3-100S (adjustable) | / | / | 735W | 30*35*130 | / | / | / |
| TM58XX | Exernal | AC85-265V | one/three adjustable | 5-100S (adjustable) | Open/Stop/Close | √ | 735W | 40*100*150 | 12VDC | one button loop control and three buttons switchable(stop button normally open) | √ |

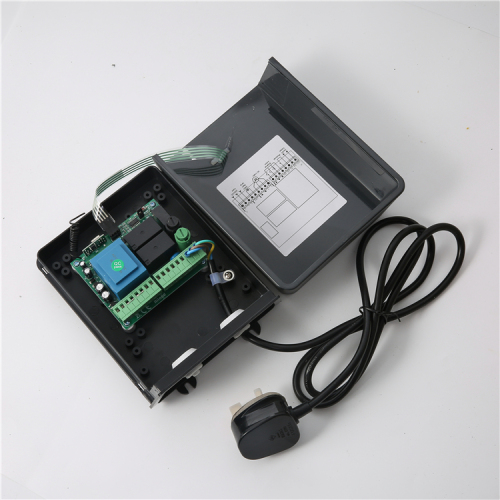

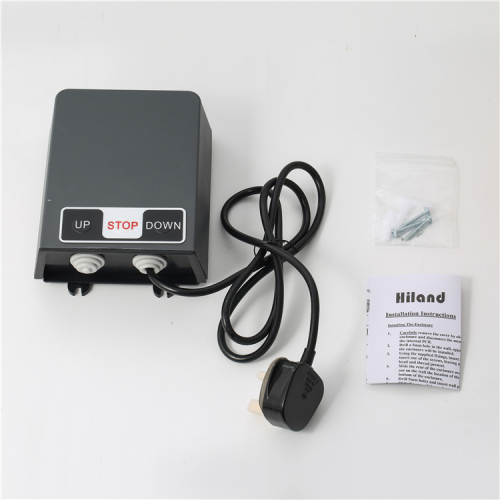

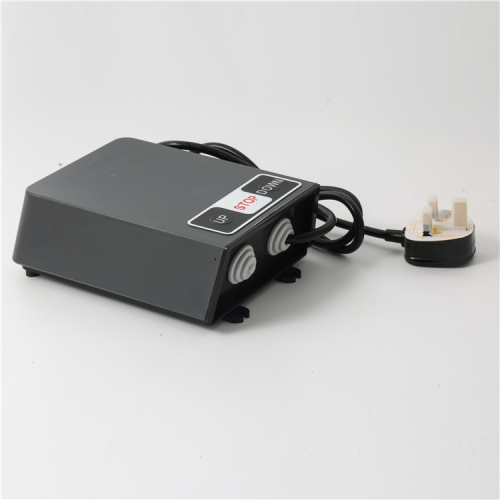

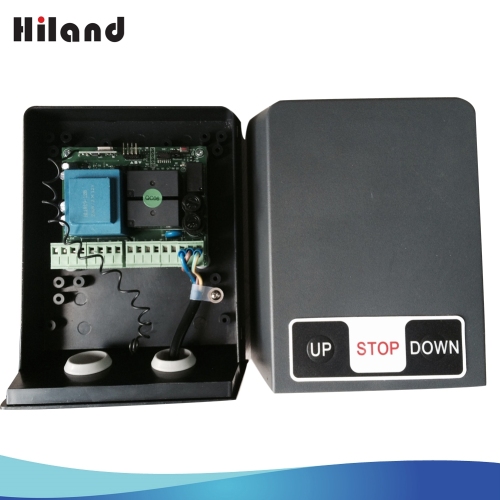

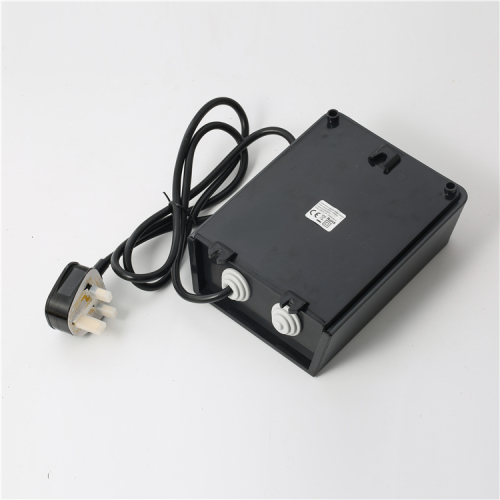

| TM40XX | Exernal | AC230V,50HZ | one button，three buttons (different types) | 60S | Open/Stop/Close | √ | 1470W | 220*170*70 | 24VDC | three buttons | Support (Turn off after 180s when door stops) |
| TM70XX | Inside wall | AC85-265V | three buttons control | 3-100S (adjustable) | / | / | 120W | 45*33*20 | / | two buttons | / |

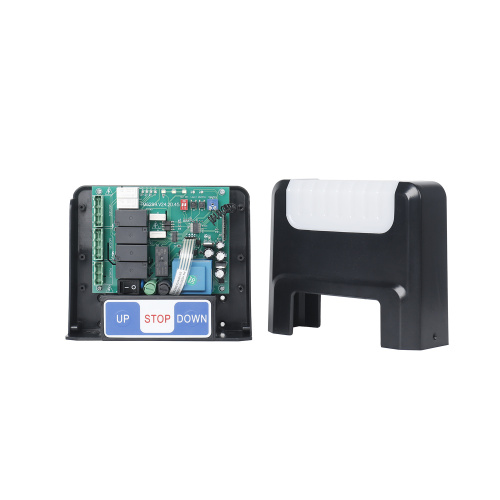

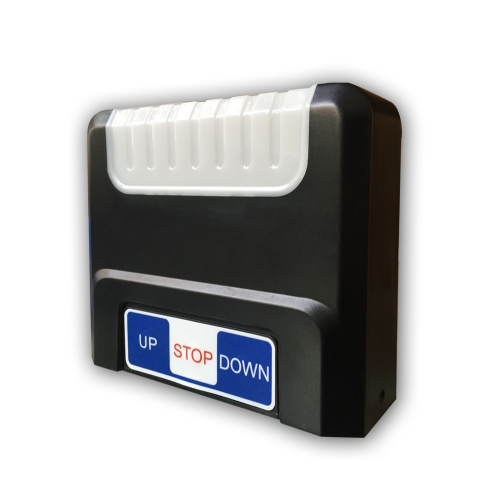

Group tubular motor controller TM6299
≥24
.jpg?x-oss-process=image/resize,m_pad,h_500,w_500)

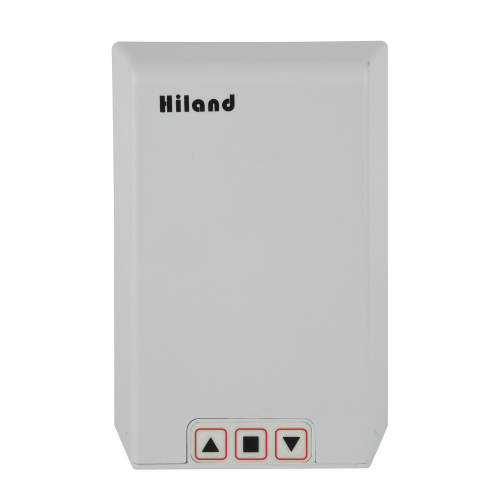

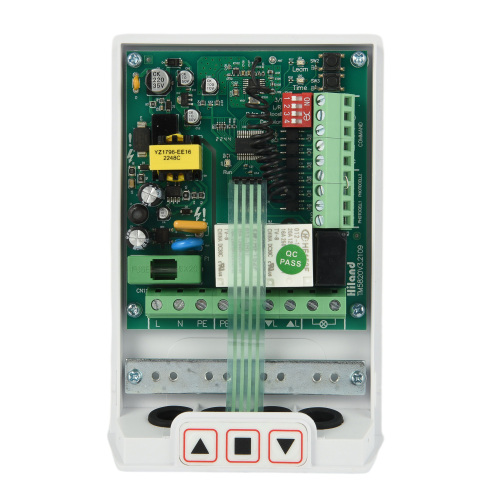

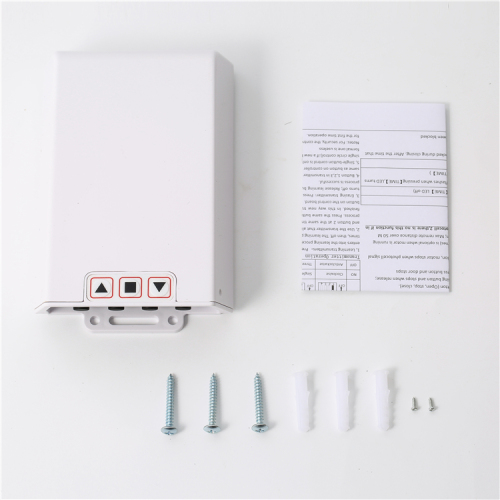

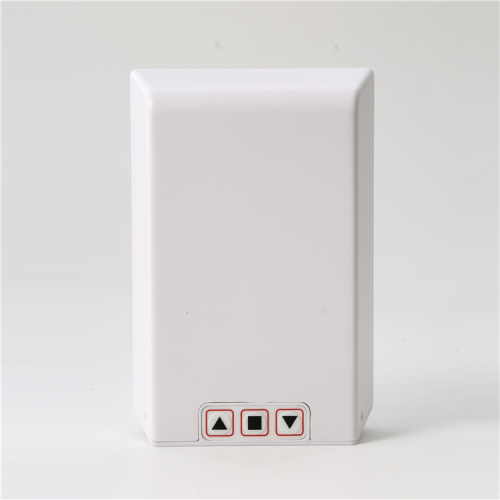

Tubular Motor Receiver TM5895 with Rolling Code
≥64

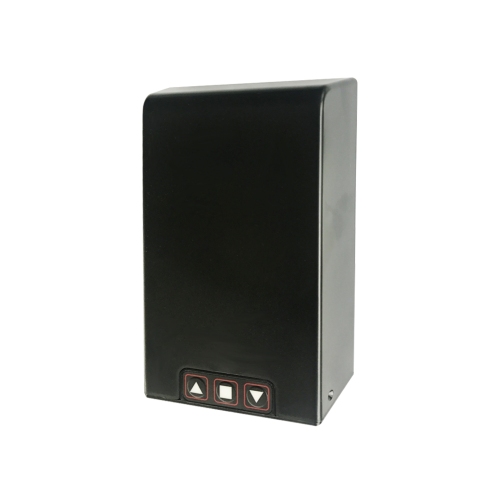

Tubular Motor Receiver TM5811
≥64
.jpg?x-oss-process=image/resize,m_pad,h_500,w_500)

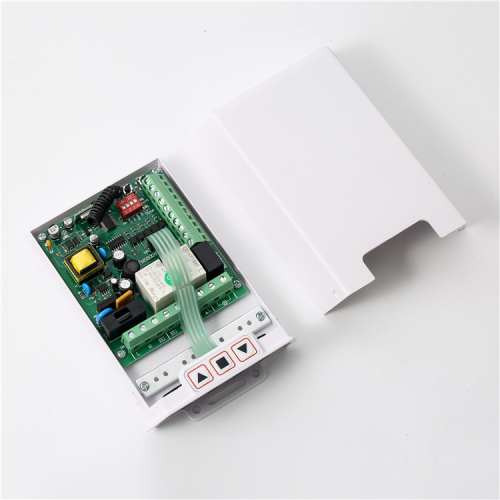

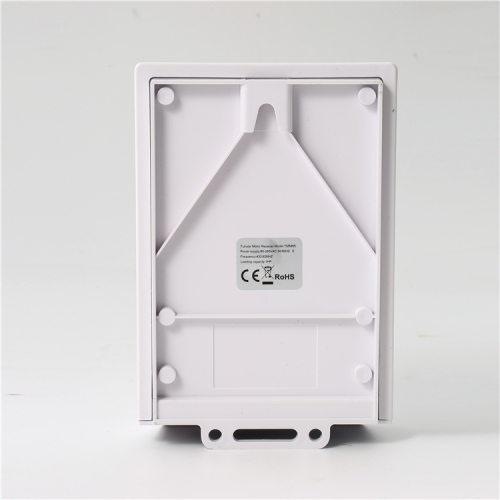

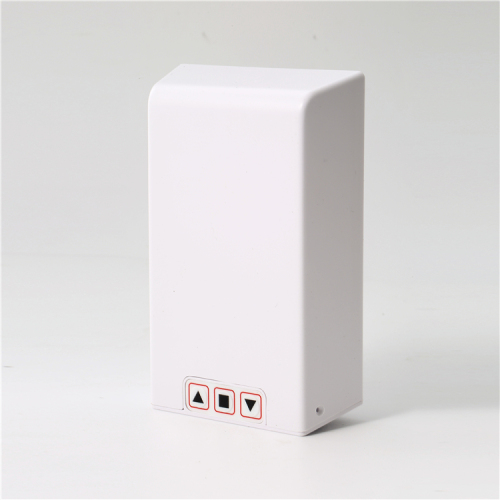

Tubular motor controller TM5801
≥64
Tubular Motor Receiver TM5162
≥42
Tubular Motor Receiver TM5152
≥42
Tubular Motor Receiver TM5151
≥42
tubular motor receiver TM5201
≥42

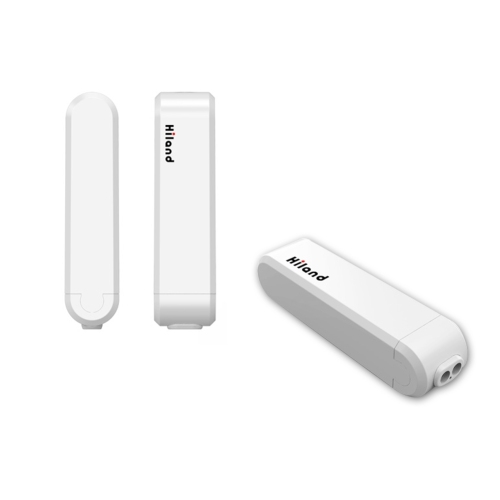

Tubular motor receiver TM5401
≥10

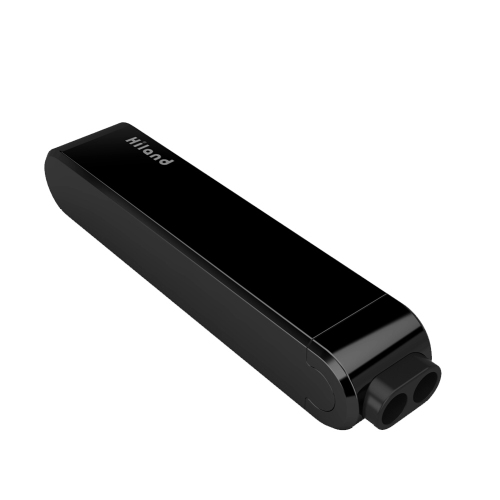

Tubular motor receiver TM5311
≥170

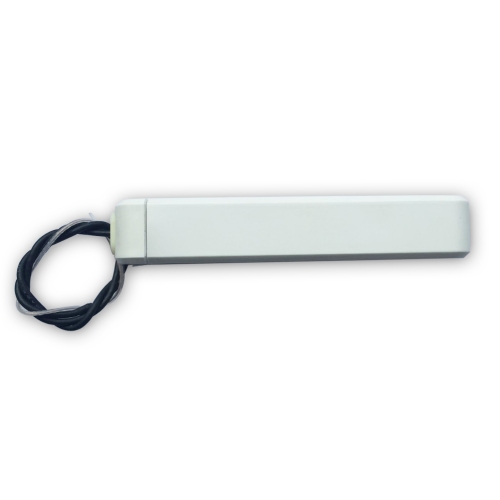

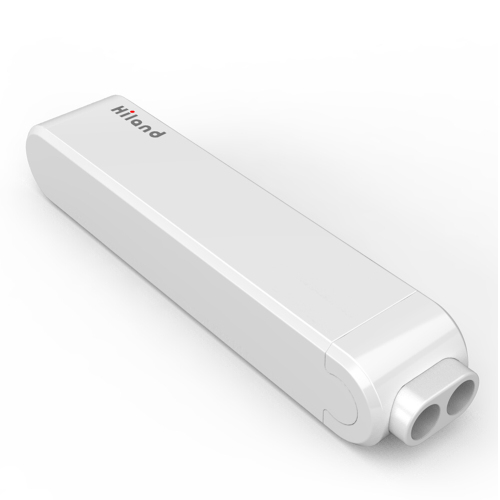

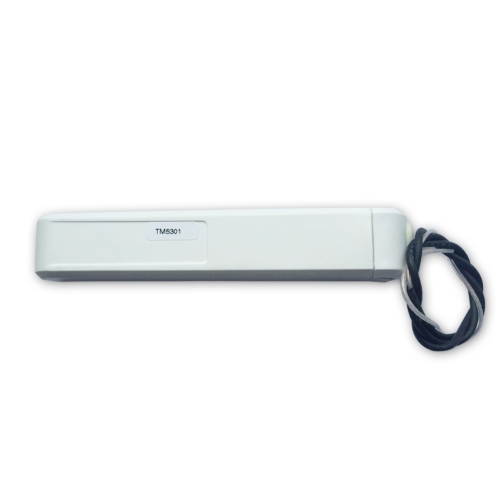

Tubular motor receiver TM5301
≥10

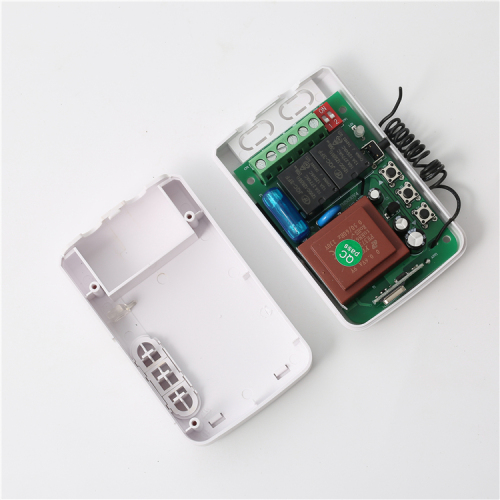

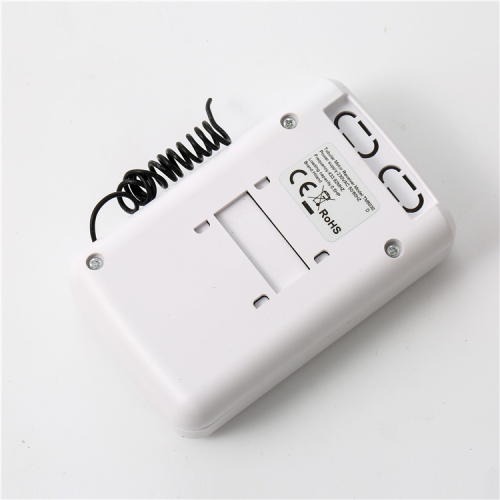

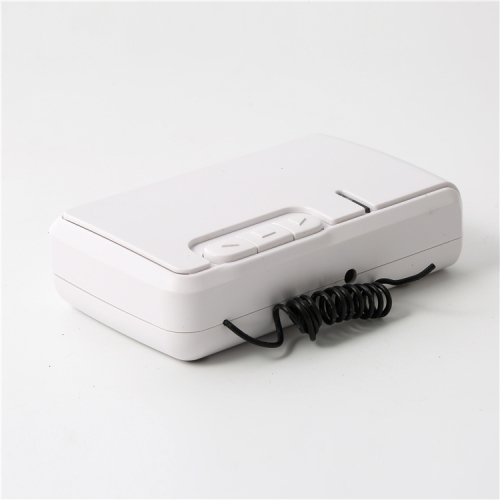

Tubular motor receiver TM5030
≥108
Tubular motor receiver TM5821
≥64

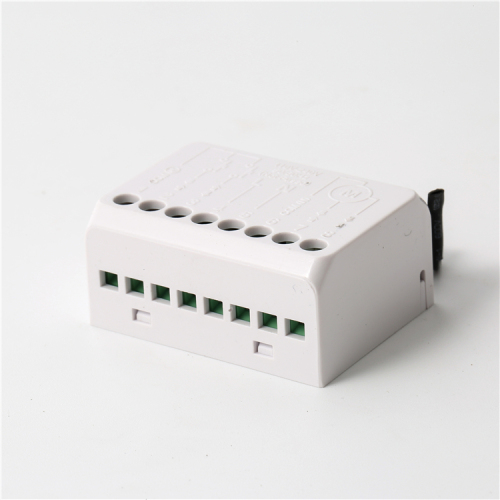

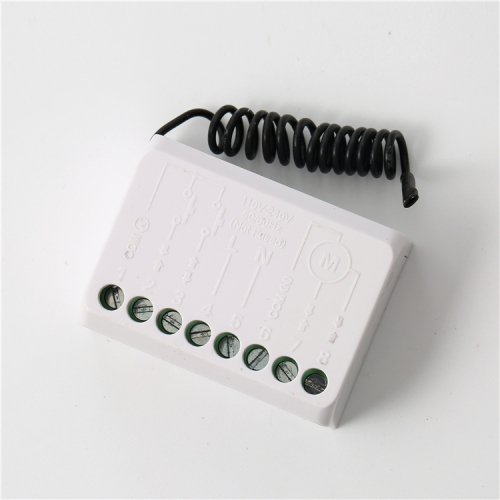

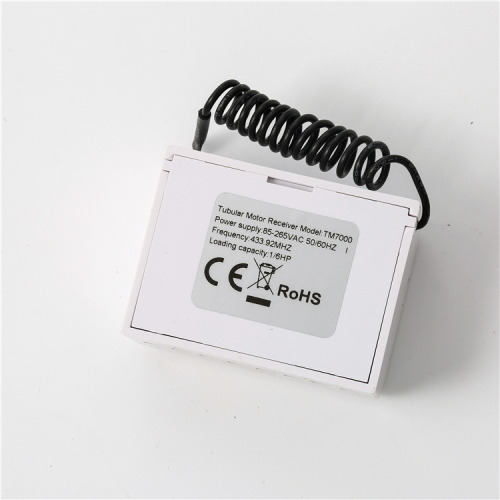

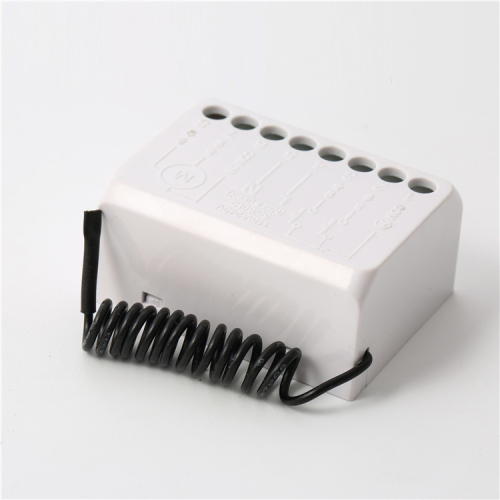

Tubular motor receiver TM7000
≥10
