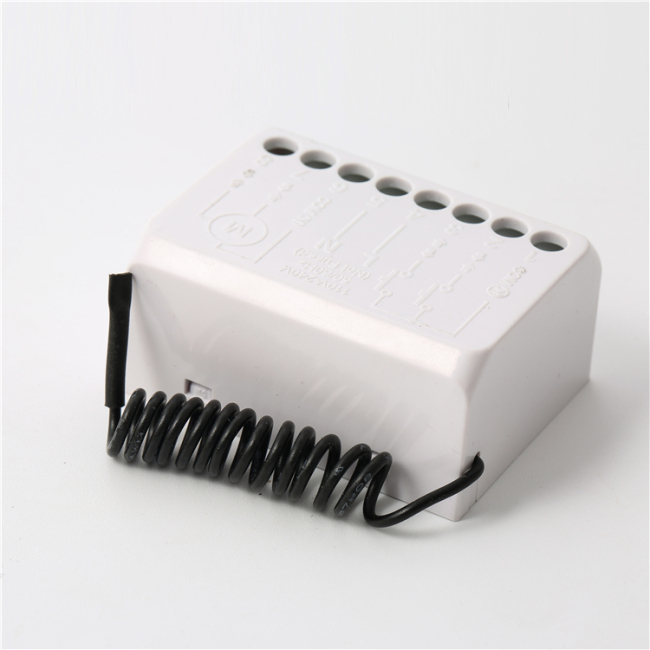

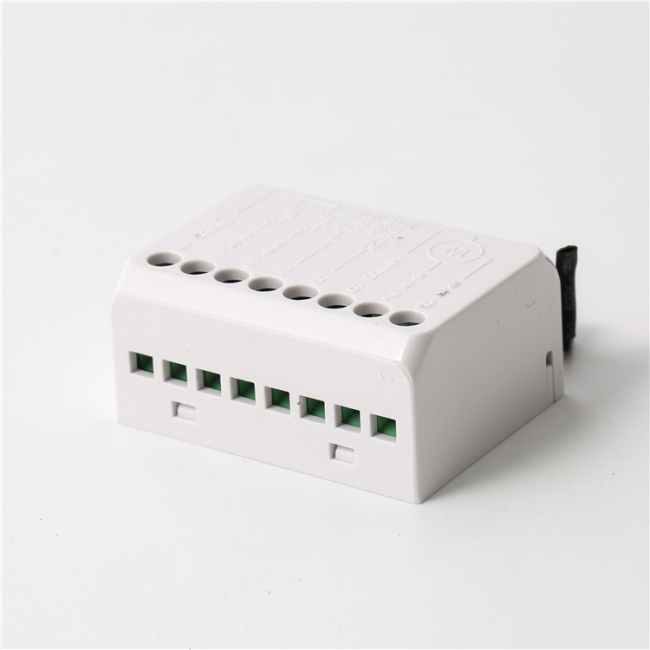

Tubular motor receiver TM7000
Wall switch built-in mini type gate entry tubular motor receiver TM7000
Packaging & Delivery
-
Product size
5.6 x 4.2 x 3 cm
-
Product weight
51 g
-
CTN. Spec
38*37*20 cm / 240pcs
-
G.W/N.W
11 / 9.4 kg
-
Certification
CE/RoHS
-
Frequency
433.92MHz
-
Code
Rolling code
-
Color
White
-
Working voltage
85 -265VAC (220VAC 50HZ or 110V AC 60HZ could be selected depending on the motor)
-
Product size
45*33*20mm
-
Product weight
39g
-
Transmitters stored
30PCS
-
Loading capacity
1.67A/ 230VAC
-
Self-learning function
Yes
-
Working temperature
-20 ℃ to 60 ℃
-
Build-in fuse
No fuse
-
Running time
3-100S adjustable
-
External switch one button& three button
2 buttons
-
Control
three buttons control
-
Operation
Impulse
-
Connect with
external switch
-
Installation position
wall switch built-in type
-
With push buttons
No
Tubular motor receiver TM7000 Loading capacity 1.67A/ 230VAC
I. Safety Instruction
1. For security, please read the instructions carefully before initial operation; making sure the power is off before connection.
2. Don’t touch any part of the product including antenna after power on to avoid electric shock.
3. Please clear the memory before initial operation. (Ref. Erasing ALL learned / memorized transmitters）
4. Do not learn the remote control when the motor is operating in order to avoid mis-operation.
5. The received signal may be interfered by other communication devices. (e.g. the wireless control system with the same frequency range)
6. It is forbidden to control the high-risk coefficient equipment / system. (e.g. cranes)
7. It is used only for the manual remote control and wireless control equipment / system which must notendanger life or property during running failure, or its security risks have been eliminated.

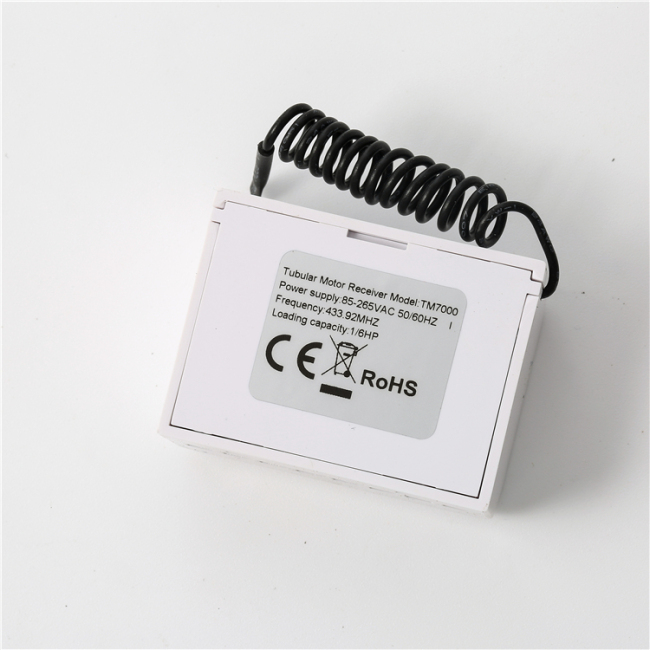

II. Technical parameters：
1. Working voltage: 85-265VAC (220VAC 50HZ or 110VAC 60HZ could be selected depending on the motor)
2. Temperature range：-20℃ to 60℃
3. Loading capacity：1/6HP, 250V
4. Built-in fuse：No fuse
5. Working frequency：433.92MHz
6. Transmitter stored：30pcs
7. Mother transmitter can be learned automatically when power on, child transmitter can be learned with mother transmitter.

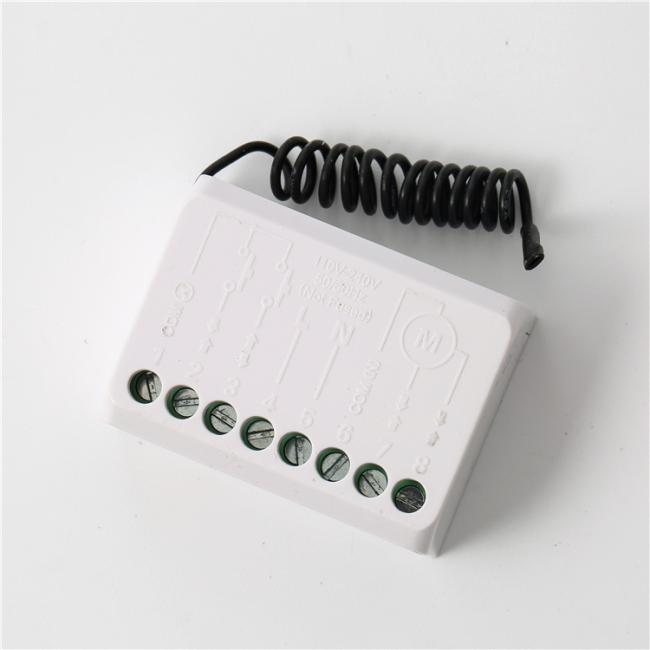

8. It can connect external control switch (open, close)
9. Press STOP and UP two buttons on mother transmitter for about 8 seconds can change the running direction of motor.
10. Press STOP and DOWN two buttons on mother transmitter for about 8 seconds can adjust the max running time of motor.
11. Size：45*33*20mm
