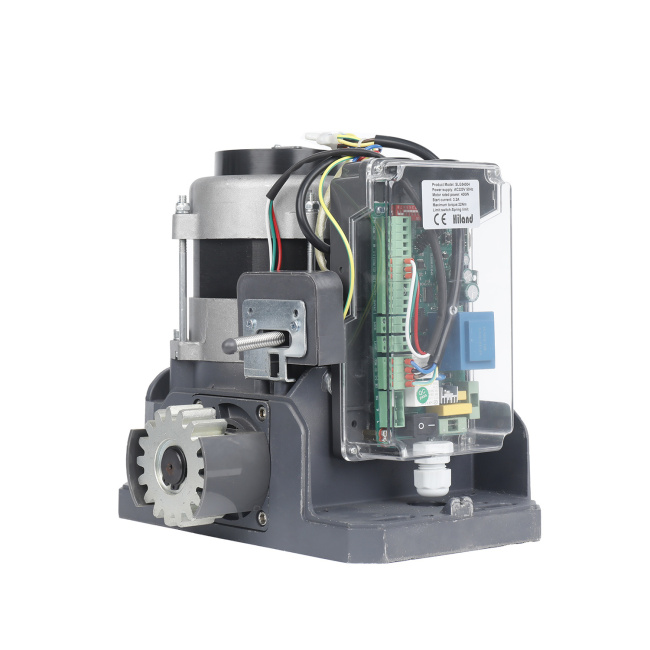

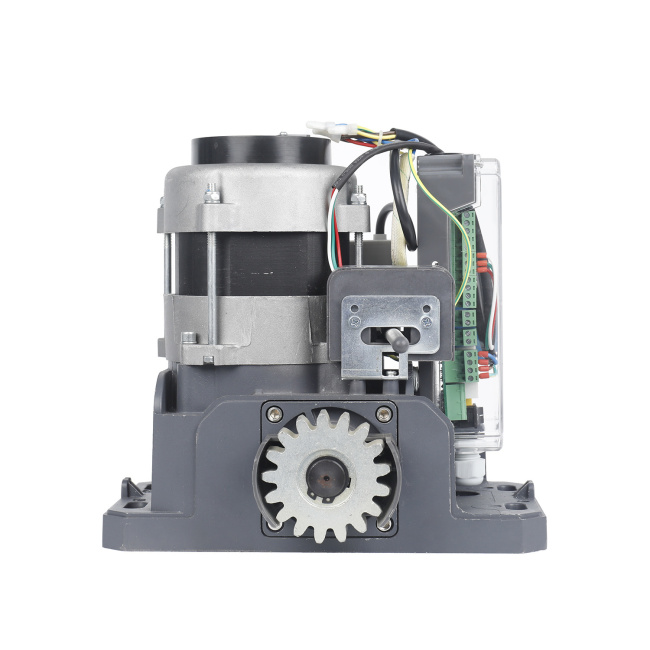

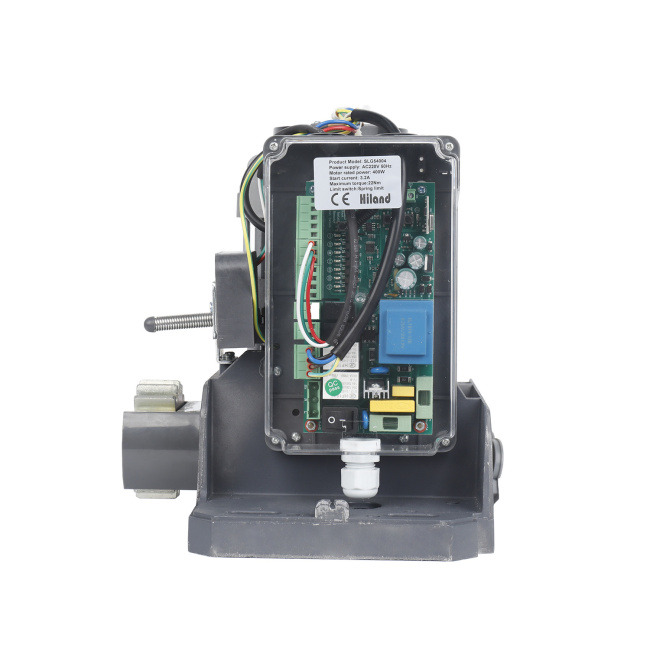

110V/50HZ Sliding motor with magnetic limit switch SLG57501

New fashion modern design sliding gate opener

Message

$??.00

Have chosenThere are no options selected.

Add To Cart Successfully!

SEND INQUIRY
110V/50HZ Sliding motor with magnetic limit switch SLG57501
110V/50HZ Sliding motor with magnetic limit switch SLG57501
110V/50HZ Sliding motor with magnetic limit switch SLG57501

110V/50HZ Sliding motor with magnetic limit switch SLG57501

New fashion modern design sliding gate opener

  • Item No.SLG57501
    MOQ1 Piece
  • Product size34 x 29 x 38 cm
    Product weight18 kg
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

I 、 Safety Instruction

Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit.

The remote-control unit is controlled by a single button mode or three button mode (please refer to the instructions of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit will flicker when the button on it is pressed. Main engine and gate can be unlocked by disengagement wrench and the gate can move with manual operation after disengagement.

Please ensure that no one is around the main engine or gate when the switch is operated and it is usually demanded to examine the stability of installation. Please temporarily stop using if the main engine needs repairing or regulation.

The installation and maintenance of the products must be carried out by professionals.

II、Technical parameters

ModelSLG57501SLG57502SLG57503SLG57504
Power supply 110VAC/50Hz 110VAC/50Hz 220VAC/50Hz 220VAC/50Hz
Motor power 750W750W750W750W
Gate moving speed11-13m/min 11-13m/min 11-13m/min 11-13m/min
Maximum weight of gate2000Kg2000Kg2000Kg2000Kg
Remote control distance ≥50m ≥50m ≥50m ≥50m
Remote control mode Single button mode /Three button mode Single button mode /Three button mode Single button mode /Three button mode Single button mode /Three button mode
Limit switchMagnetic limit switch Spring limit switch Magnetic limit switch Spring limit switch
Noise ≤60dB ≤60dB ≤60dB ≤60dB
Output torque 42N.m 42N.m 42N.m 42N.m
Output shaft height 50mm50mm50mm50mm
Frequency 433.92 MHz 433.92 MHz 433.92 MHz 433.92 MHz
Working temperature-20°C - +70°C -20°C - +70°C -20°C - +70°C -20°C - +70°C
Package weight18Kg18Kg18Kg18Kg
