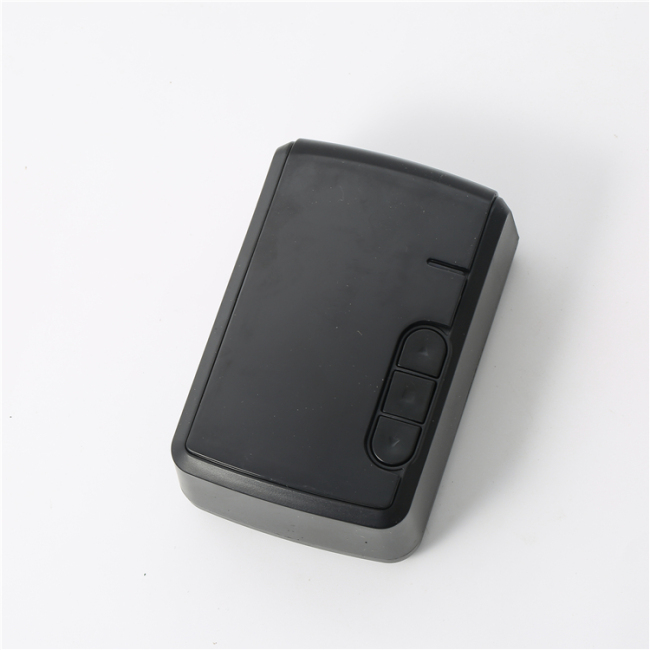

Tubular Motor Receiver TM5162
Factory made strong fuction tubular motor receiver TM5162 for gate/window
Packaging & Delivery
-
Product size
12 x 7.6 x 4.6 cm
-
Product weight
360 g
-
CTN. Spec
36.5*33.5*16 cm / 42pcs
-
G.W/N.W
15 / 14.2 kg
-
Certification
CE/RoHS
-
Frequency
433.92MHz
-
Code
Rolling code
-
Color
Black
-
Working voltage
220VAC,50HZ
-
Product size
113*74*44mm
-
Product weight
338g
-
Transmitters stored
30
-
Suitable tubular motor
35mm, 45mm, 55mm, 59mm, 64mm, 92mm, 115mm,
-
Loading capacity
2HP，240VAC
-
Self-learning function
Yes
-
Working temperature
-20℃ to 60℃
-
Build-in fuse
Electric circuit(0.5A), motor(10A)
-
Running time
100S
-
External switch one button& three button
one button control
-
Control
one button control
-
Operation
Impulse
-
Connect with
external switch, photocell, flash lamp
-
Installation position
outside type
-
With push buttons
Yes
Tubular Motor Receiver TM5162
I. Specification
1. Working voltage: 220VAC,50HZ/
2. Loading capacity: 2HP，240VAC
3. Working frequency: 433.92MHz
4. Built-in fuse: electrocircuit (0.5A), motor (10A)
5. Temperature range: -20℃ to 60℃.
6. Code:Rolling code
7. with external button and photocell protection
8. Size: 113×74×44MM
Ⅱ. Safety Instruction
1. For security, please read the instructions carefully before initial operation; making sure that the power is off before connection.
2. The received signal may be interfered by other communication devices. (e.g. the wireless control system withthe same frequency range)
3. It is forbidden to control the high-risk coefficient equipment / system. (e.g. cranes)
4. It should be applied in dry indoor place or in the electric appliance place.
III. Operational process
5.1 Three button control system with transmitter and non-Latch model Button 1,2,3 in transmitter is in correspondence with open, close and stop.
5.2 Single button control system and non-Latch model Press-Open(motor works clockwise), press-stop, press-close(motor works anti clockwise),press-stop,and so on in a loop. Single-button control is only effective to the learned button; if a new button of transmitter learned into the control panel, the formal one is useless. (e.g.: if learned button ① at first, and then button ② or ③, the former button ① becomes invalid).
5.3 Infrared sensor protection,It only work when door closing. Motor stops after 1 second and reverse when photocell signal disconnecting during door closing.(External photocell PHOTO port connects photocell normally close switch)
5.4 with external switch,External switch is single button control.Press-Open(motor works clockwise), press-stop, press-close(motor works anti clockwise),press-stop,and so on in a loop.
