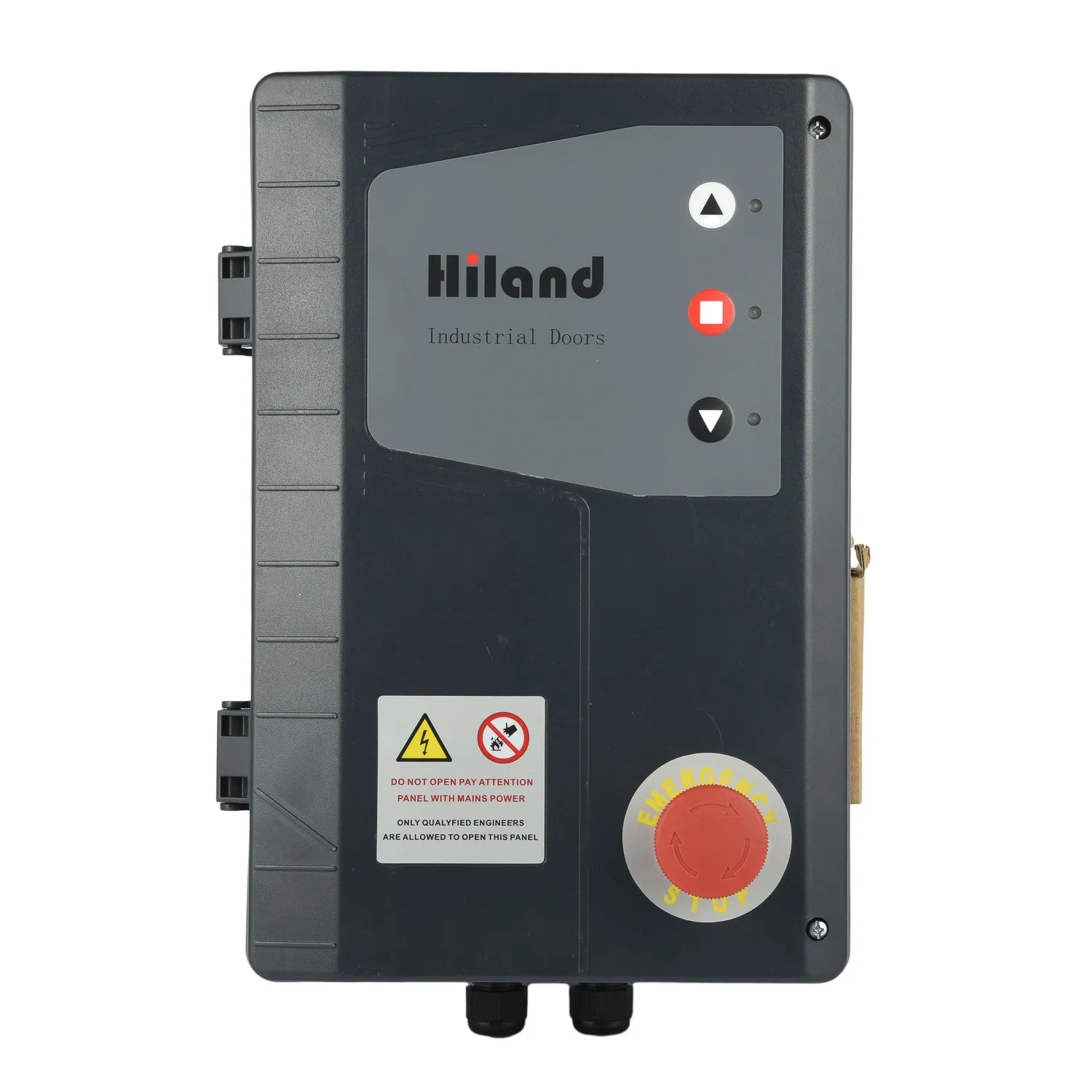

IDO4000 Industrial Door Opener

Safety Instruction
1. The industrial door operator should be installed and put into operation by qualified
personnel. Otherwise, serious personal injury or property damage may occur.
2. Installation and wiring must be in accordance with the construction standards and
electrical standards, diameter ≧ 1.5mm2
; power must have a reliable grounding, ground
wire must be reliably connected to the place labeled ground tab, ground lead on the
power line is prohibited to be removed; front end of incoming power line should be
installed with electrical leakage protector which is in line with national standards.
3. This industrial door operator is only allowed to be installed on well-balanced door
which has balance spring, otherwise machine may be damaged due to overload.
4. Door should be flexible and run without stagnation; The end of door lead rail must be
installed with mechanical stop block and buffering booster to prevent the door from rolling
out.
5. Control unit should be installed on the wall or a post of 1.4 meters away from the
ground where the operation of door can be observed to prevent children from
inadvertently touching. Keep the remote control well, do not allow children to touch or
play in case of any danger. Do not use the remote control when you didn’t see the
operation of door.
6. Before repairing and moving the industrial door operator and its control unit, please cut
off the power supply, and make sure that the door has been locked and there is no any
risk of falling due to self-weight is null.
7. Pedestrian and vehicle are prohibited to go through or stay when the door is running.
8. Hand-pulled chain is prohibited to be pulled during the operation of the industrial door
operator to prevent the motor from damaged.
9. To ensure the safety of pedestrian and vehicle, it’s recommended to install the infrared
protection and airbag protection devices.
10. Please check the safety protection devices and the door running condition from time
to time to ensure the safety and stability of door operation.
