Photocell
Technical Characteristics
| Model | Working voltage | Battery LIfe | Working current(24VDC) | Size | Weight | Receiver range | Internal Rotation system adjusted Angle | Waterproof grade: | Photocell wavelength | Angle of opposite emission | Working temperature | Relay contact loading capacity |
| P5111 | 12~24VAC/DC or 2*1.5V AA Size Battery | normal | emitter: ≤8mA receiver: ≤40mA | 127*50*35mm | 155g | ≥12m | 0～180 º | IP54 | 940nm | ≤±5º | -20º～+60℃ | 1A/30VDC |
| P5113 | 12~24VAC/DC or 2*1.5V AA LIthium iron Battery | much longer (2 Years) | ||||||||||
| P5112 | 12~24VAC/DC or 2*1.5V AA Size Battery | / | ||||||||||
| P5102 | 12~24VAC/DC | / | emitter: ≤15mA receiver: ≤30mA | 127*50*28mm | 133g | 0～180 º | ||||||
| P5103 | 127*50*28mm | 131g | ≥20m | / | ||||||||
| P5001 | 73*43*25mm | 67g | ≥12m | / | IP43 | |||||||

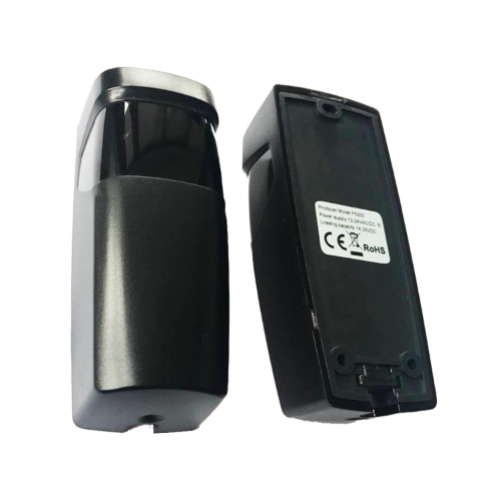

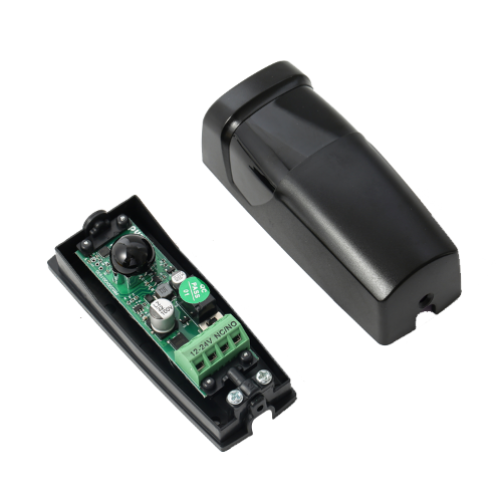

| P5200 | 100*40*35mm | 107g | 0～180 º | IP54 |

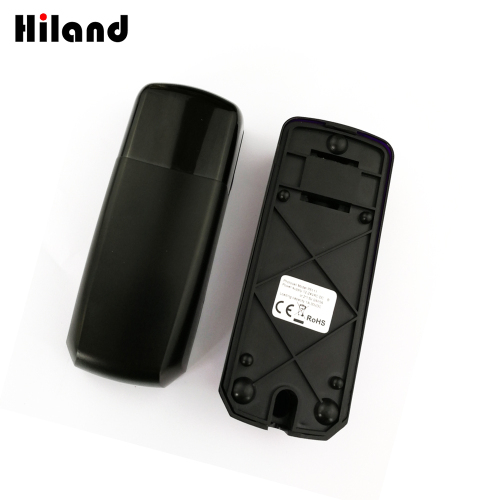

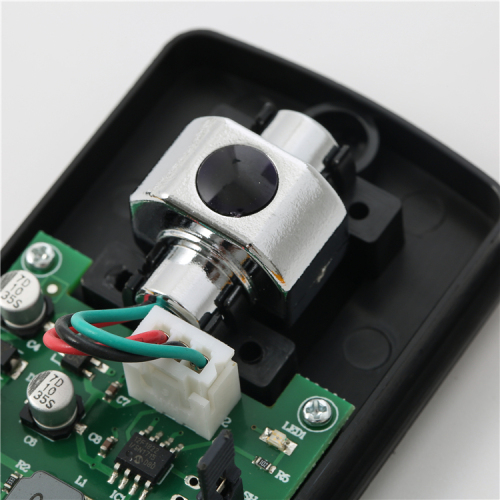

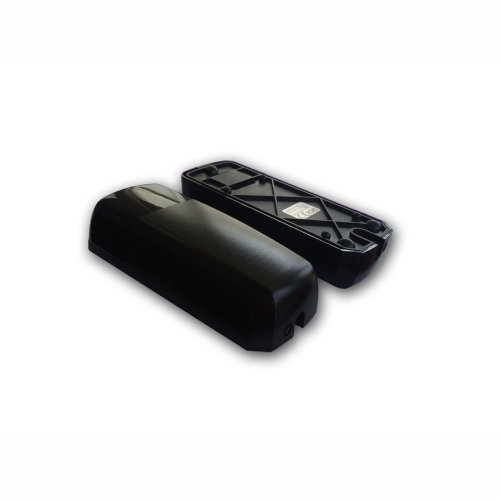

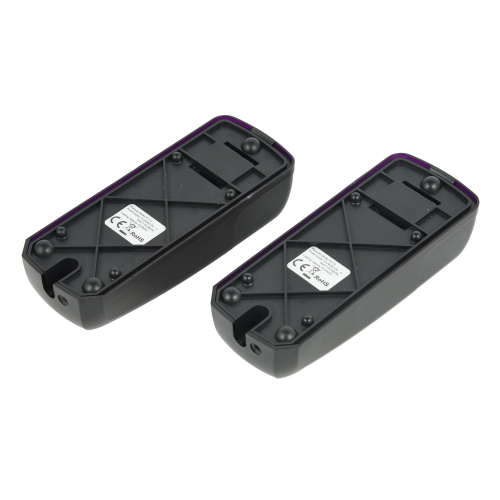

Automatic gate photocell Sensor P5102
USER MAUNALAutomatic Photocell Sensor P5102I. Technical Specification&nb...
≥80

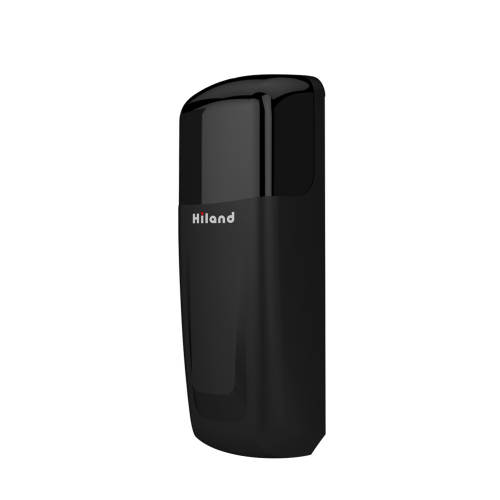

Door Lithium iron battery type photocell P5113
USER MAUNALAutomatic gate control Lithium iron battery type Photocell P5113
...
≥80

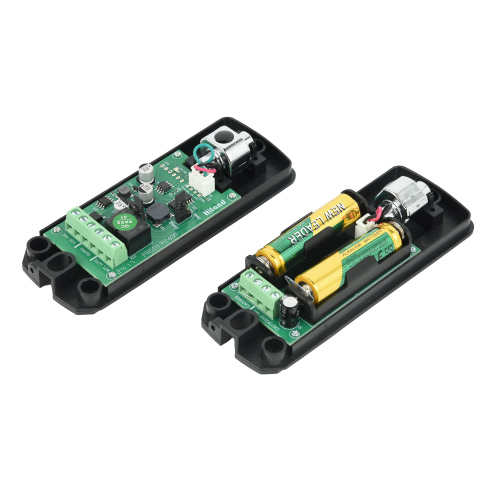

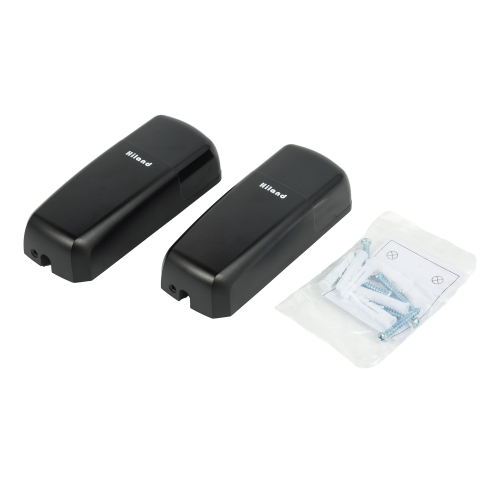

Door battery type photocell P5111
USER MAUNAL Automatic gate control Battery type Photocell P5111I. Saf...
≥80

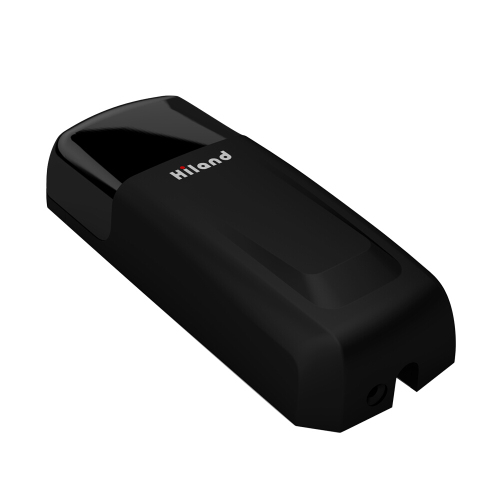

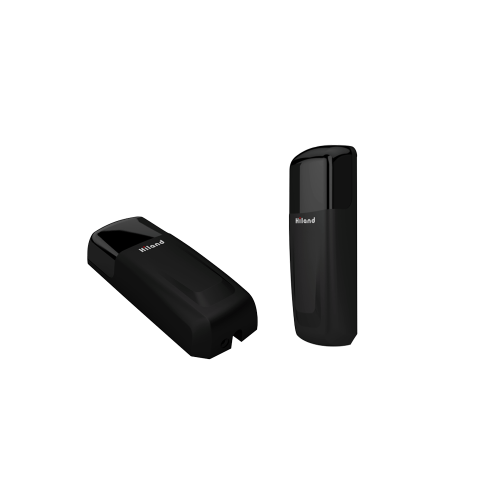

Door battery type photocell with 2 years battery life P5112
USER MAUNALI. Safety Instruction1. For security, please read the user m...
≥80
Showing 1 to 5 of 5 (1 Pages)
